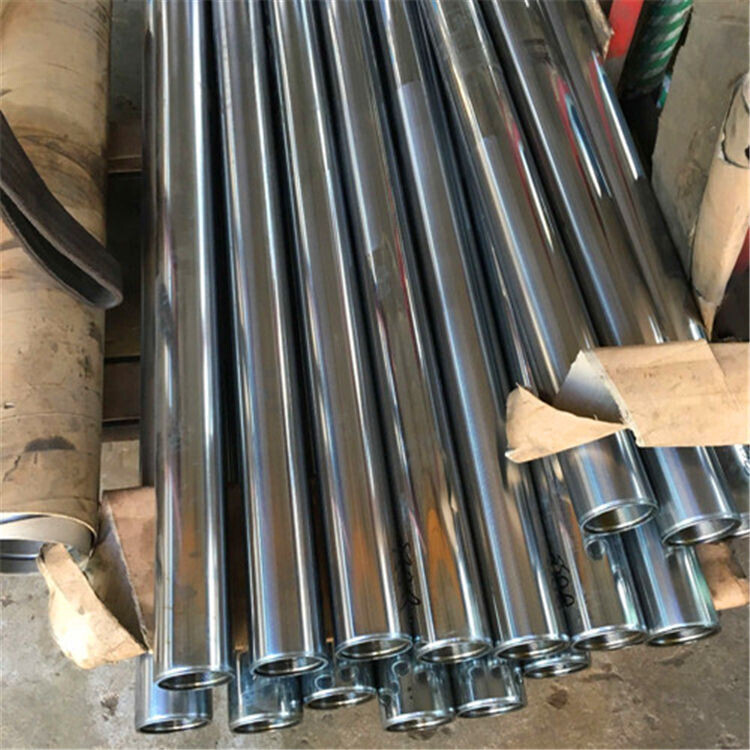

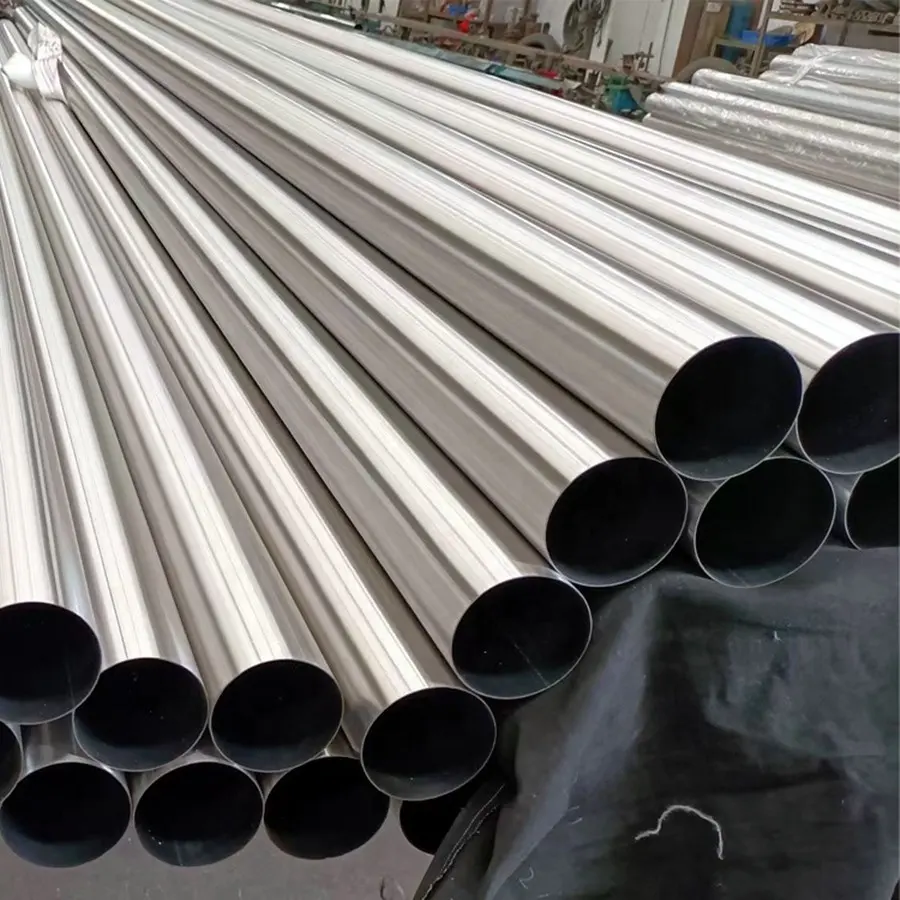

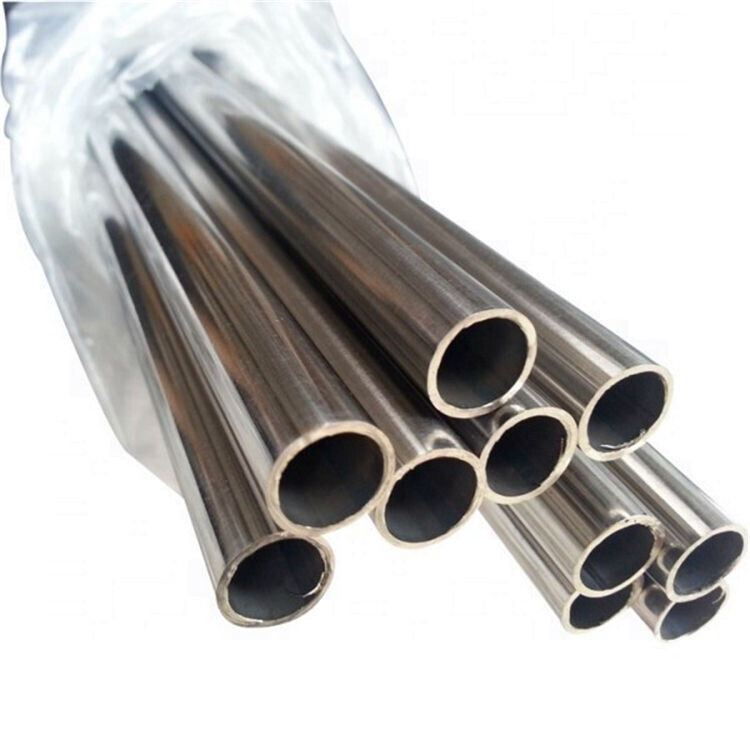

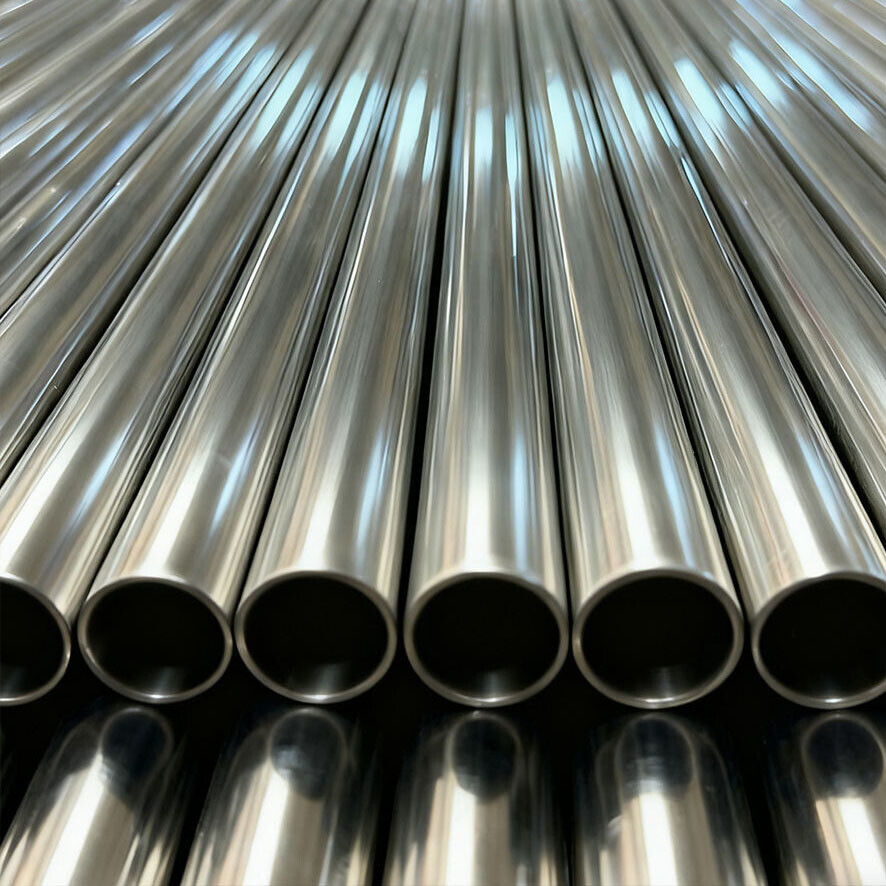

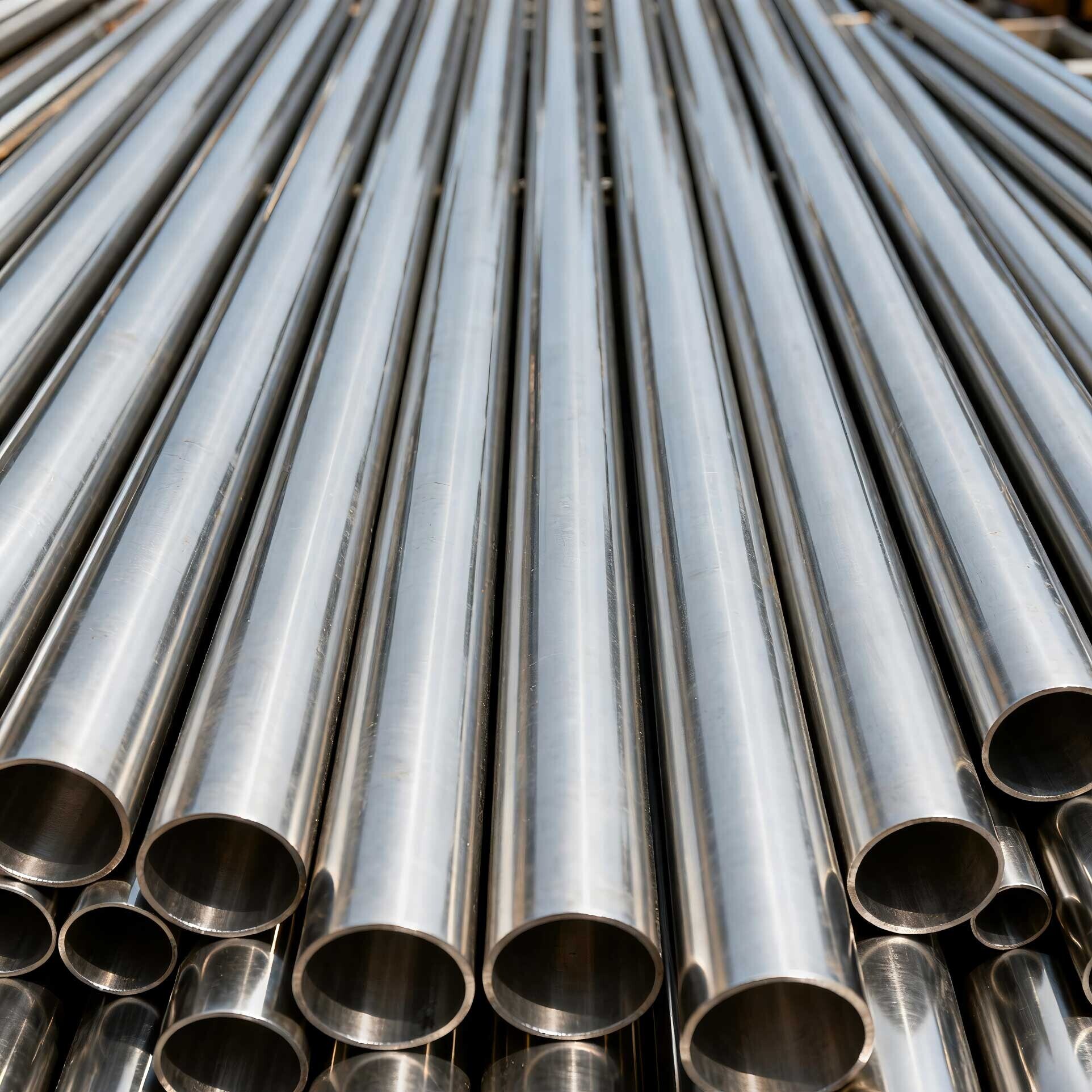

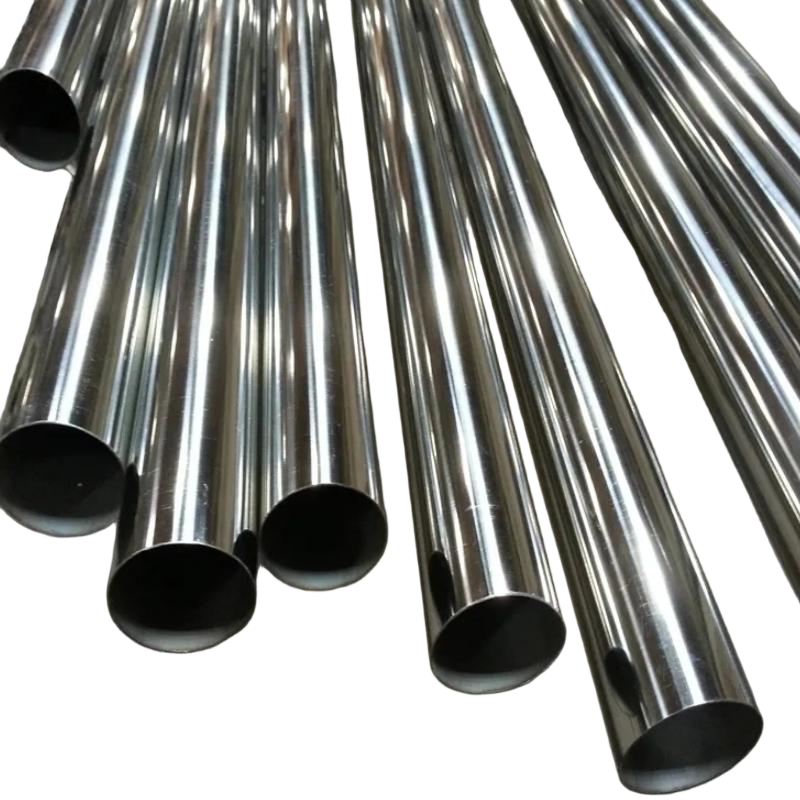

Stainless Steel Welded Pipe

Product Name:Stainless Steel Pipe, Stainless Steel Welded Pipe,

Outside Diameter:10.3mm-3048mm

Wall Thickness:1.24mm-60mm; SCH5S, 10S, STD, XH, 40, 80, 100, 120,160, XXH acc. to 36.19M

Pipe Standard: ASTM A312/A358/A789/A790/A928/B862/API 5LC/

A269/A249/A270/DIN11850/ISO2037/JIS3447/A1016/A688/A814/

A409/JIS G3448/G3459/G3463

Grades:

200series:201,202.204Cu.

300series:301,302,304,304L,305,307,308,308L,309,309S,310,310S,316,316L,321, 347,347H;/

400series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.

Duplex: S32205,S31803,S32750,S32760/

Nickel bass alloy: N08800,N08810,N08811,N08825,N06625/

Other special: S31254,N08367,N08904/

Titanium alloy: Grade 1, Grade 2, Grade 9, Grade 12

Application: Chemical, Food and beverage,Marine,Mining,Oil and gas,Pharmaceutical, Petrochemical, Power generation,Renewable energy, offshore engineering, ship building, paper industry, water treatment, HAVC system, boilers, heat exchangers, Aviation, funiture, OEM, Construction, Sanitary etc.

Send Email

Product Description

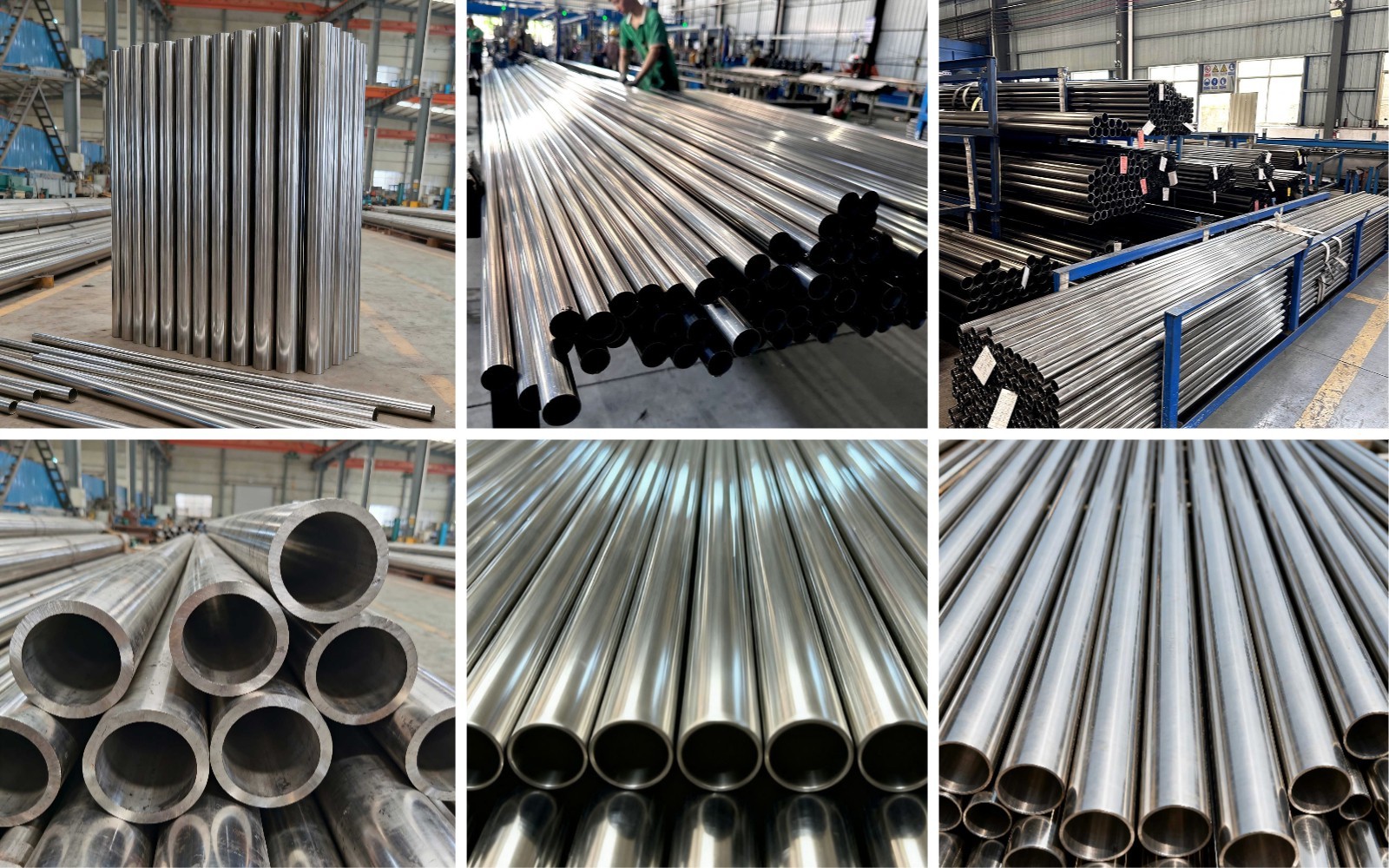

Product Display

Product Application

Packaging and shipping

High dimensional accuracy and surface quality: Uniform wall thickness, smooth inner and outer surfaces.

Capable of producing extra-large diameter thin-walled pipes: Diameters can exceed 2000mm, meeting special project requirements.

Lower production cost and shorter delivery time: High production efficiency and material utilization.

Specifications

Item	Detailed Parameters & Description
Specifications	Standards	ASTM A312, GB/T 12771, EN 10296-2
	Standards	ASTM A312, GB/T 12771, EN 10296-2
	Grades	304/304L, 316/316L, 430, 201
	Process	TIG, Plasma, Laser, High-Frequency welding
	OD	10mm ~ 2020mm；or larger
	WT	0.5mm ~ 25mm
	Length	Fixed length (6m, 12m) or customizable
Performance	Weld Quality	Smooth bead, 100% eddy current or X-ray testable
	Surface Finish	2B, BA, No.4, HL, EP (Electro-polished)
	Mechanical	Weld strength ≥90% of base metal
	Pressure Rating	Up to Class 2500+ based on wall thickness
Ends	Flat ends, angled ends, threaded connectors or sockets; plastic caps and steel rings are available if needed.
Packing	PVC film, Waterproof Paper wrapped, durable tags on each bundle, Small pipes in coils, large pipes in bundles or wooden crates/racks

Marine and Marine Engineering
Petrochemical Industry
Municipal Water Supply And Drainage
Natural Gas Transportation
Fire Protection
Energy and Electricity

FAQ

1.What kind of customer service do you provide?

We provide comprehensive customer service, including basic design, procurement of supporting facilities, and options for dispatching installation guides.

2.What are the customer evaluations of your company?

We are proud to consistently receive five-star reviews from our customers, which demonstrates our commitment to quality and service.

3.What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished products, every stage is carefully inspected to ensure excellent quality.

4.Do you accept container loading inspection?

Welcome to dispatch inspectors, not only for container loading, but also at any time during production.

5.What is the delivery time?

The delivery time depends on the quantity of orders. Usually, the delivery time to the nearest port in China is 15-30 days after receiving the deposit.

6. How to obtain a project quotation?

You can contact us 24 * 7 via email, phone, WhatsApp, WeChat, etc. You will receive a reply within 4 hours.
