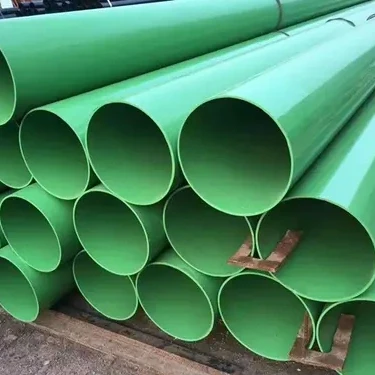

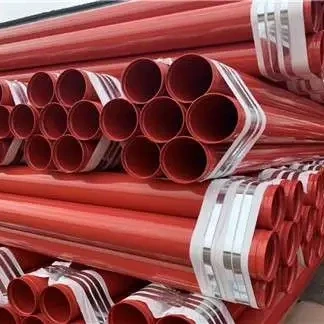

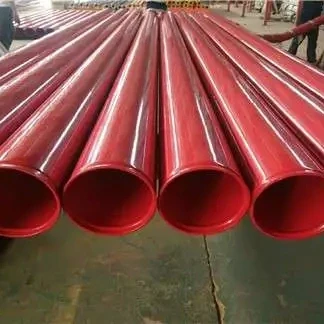

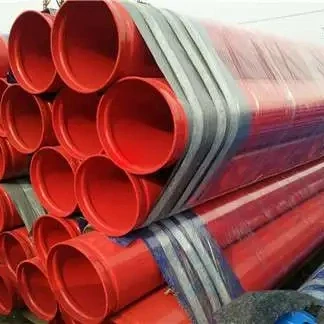

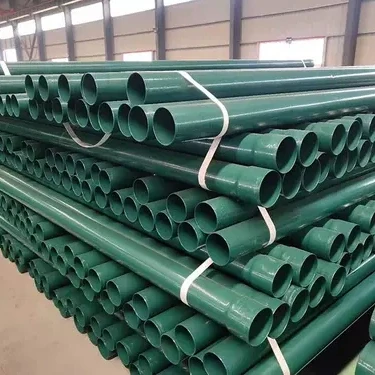

FBE Coating Steel Pipe

Pipe Type: FBE (Fusion Bond Epoxy) Coated Pipe, Epoxy Coated Carbon Steel Pipe,Single-layer Anti-corrosion Epoxy Powder Pipe,Double Layer FBE Coating Pipes

OD: 20mm~3600mm
Wall thickness: 1mm~80mm
Length: Random Length, Fixed Length, SRL, DRL
Coating Standard: DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 CAN/CSA-Z245.21etc.

Application: Used for natural gas, petroleum, water & sewage, and pipe systems

Send Email

Product Description

Product Display

Product Application

Packaging and shipping

Single-Layer FBE Anti-Corrosion Coated Pipe

Epoxy powder spray-applied with electrostatic guns in typical thickness of 350 – 450μm.

Double-Layer FBE Coated Pipe (Enhanced mechanical & chemical protection)

1st layer – Corrosion protection epoxy powder spray-applied with electrostatic guns in typical thickness of 250 – 275μm.

2nd layer – Mechanical protection epoxy powder spray-applied with electrostatic guns in typical thickness of 375 – 625μm.

Epoxy Powder Material Data：

Moisture Content	< 0.5%
Particle Size	Larger than 250um<0.2%; Larger than 150um<3.0% >250µm portion < 0.2%; >150µm portion < 3.0%
Particle Size
Density	1.2 ~ 1.8 g/cm³(Varies depending on formula and color)
Recommened Film Thickness	FBE: 300-400 µm (12-16 mils)
Recommened Film Thickness	3-layer PE/ PP: 150-300 µm (6-12 mils)
Theoretical Coverage	0.6993 m²/kg/mm
Operating Temp.	-73℃ - 110℃
Gel Time	@200°C ≥ 12s (Within ±20% of the manufacturer's nominal value)
Thermal Properties	ΔH ≥ 245 J/g, Tg2 ≥ 95℃
Storage	12 months (Conditions: <27°C, relative humidity <65%)

Specifications：

Coating Structure		Standard Single-layer（FBE） Enhanced Dual-layer (DFBE)


Coating Thickness	Single-layer	200 - 500 µm (common standard thicknesses, such as 300 µm, 400 µm)
	Dual-layer	200μm~800μm；According to the design, the total thickness is usually greater than 500 µm.Depending on the design, the total thickness is usually greater than 500µm.

	Measurement standards	The thickness is uniform and meets the requirements of standards such as ISO 21809-2. Measurement is performed using a calibrated magnetic thickness gauge. The thickness is uniform and meets the requirements of standards such as ISO 21809-2. It is measured using a magnetic thickness gauge.

Bare Pipe	Material	Carbon Steel (如API 5L Gr.B/X42-X70, GB/T 9711.1 L245-L485)
	Type & Process	(SMLS)、(LSAW/SSAW)、(ERW)

	OD Range	20mm~3600mm (DN25 - DN1500+)

	WT Range	1mm~80mm

	Length	6m, 12m, Random Length, Fixed Length, SRL, DRL Customizable.

	Surface Prep	Near-white metal blast cleaning (Sa 2.5), with an anchor pattern depth of 50-100 µm.

Materials, Standards & Certs.	Coating System Std.	DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 CAN/CSA-Z245.21etc.
	Pipe Material Std.	API 5L, ISO 3183, GB/T 9711.1
	Key Tests	Resistance to cathodic disbondment (e.g., 65°C, 28 days), adhesion, flexibility, and abrasion.
	Certification	Third-party inspection reports (such as from DNV, BV, or SGS) and complete material certificates (MTC/CoC) are provided.
Ends		Flat ends, angled ends, threaded connectors or sockets; plastic caps and steel rings are available if needed.

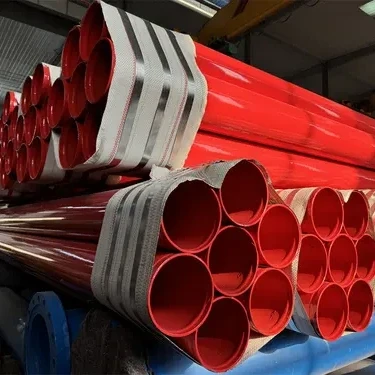

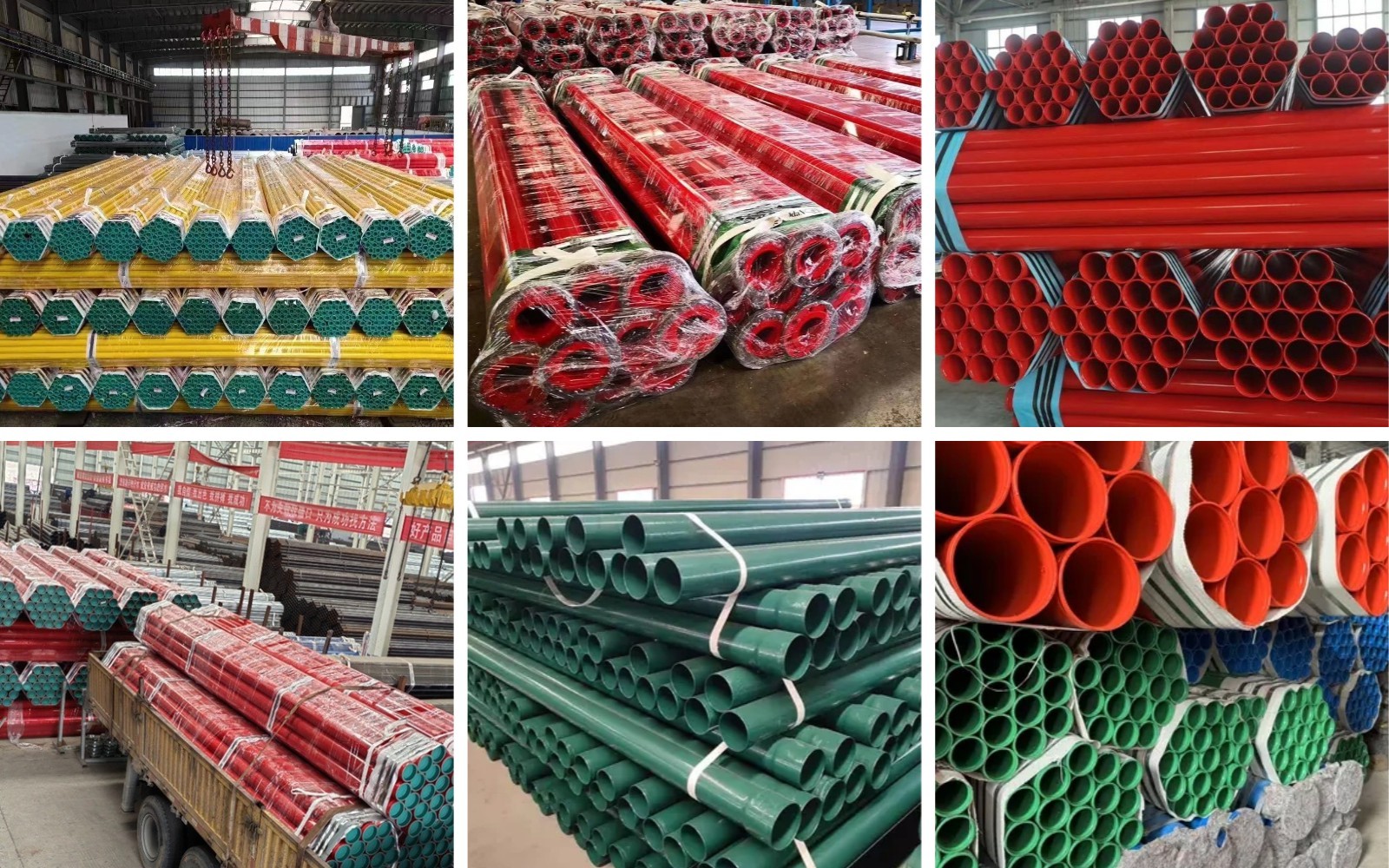

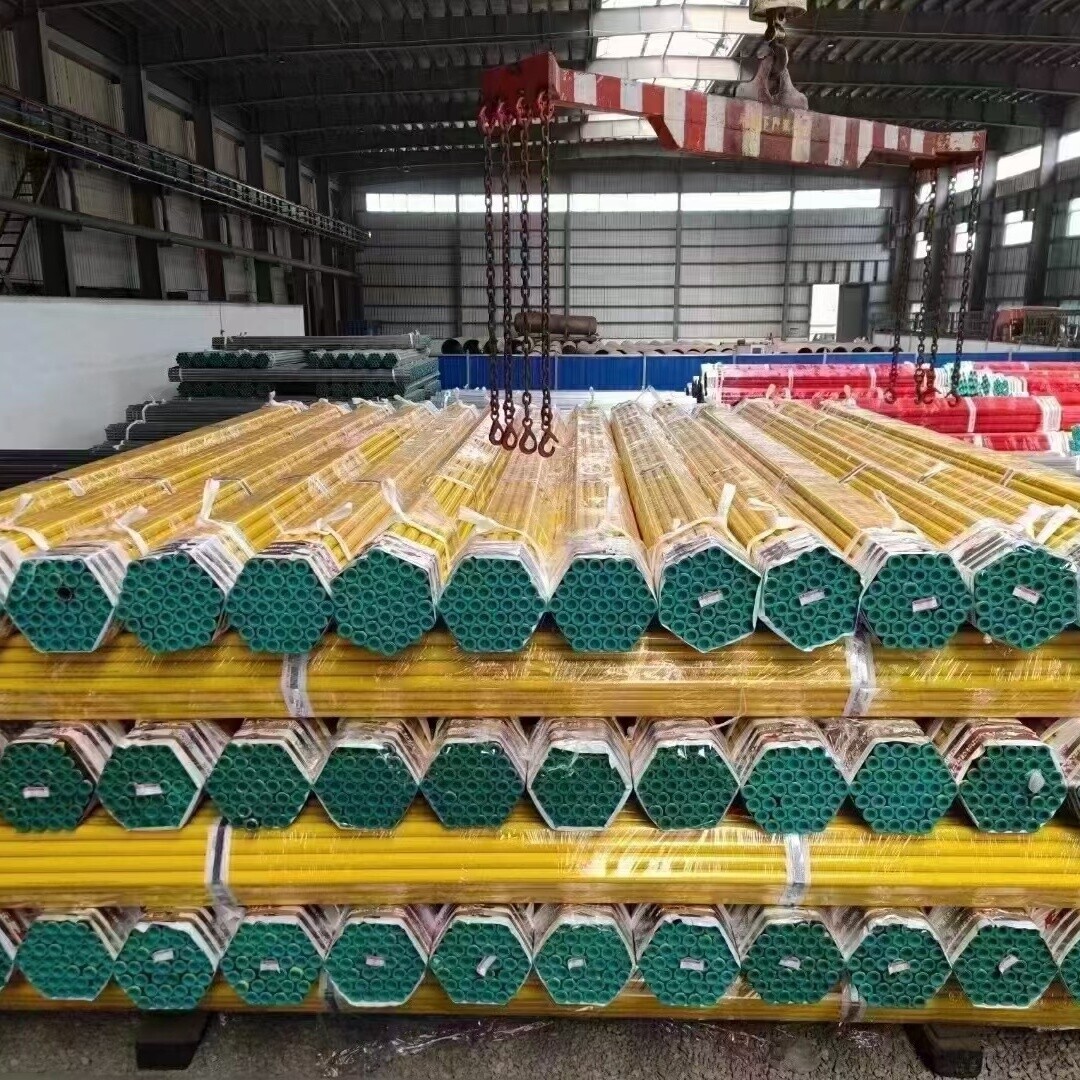

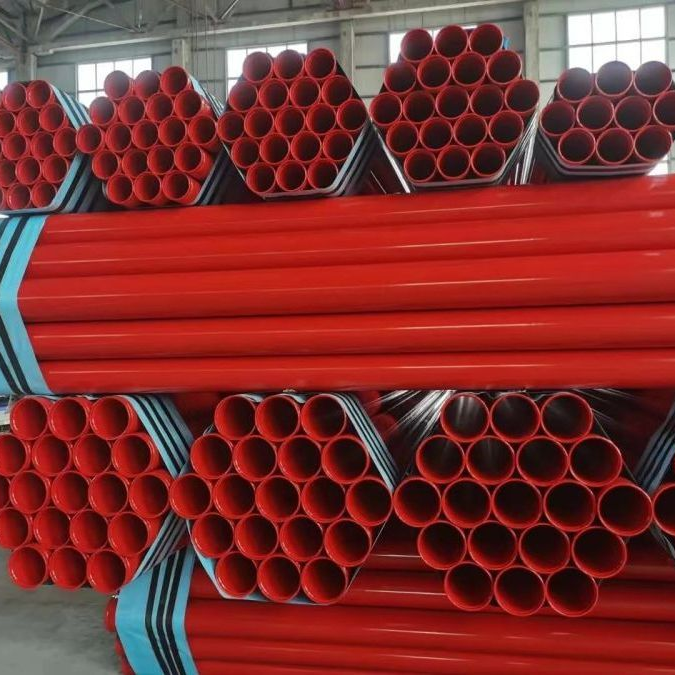

Packing		Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

Marine and Marine Engineering
Petrochemical Industry
Municipal Water Supply And Drainage
Natural Gas Transportation
Fire Protection
Energy and Electricity
