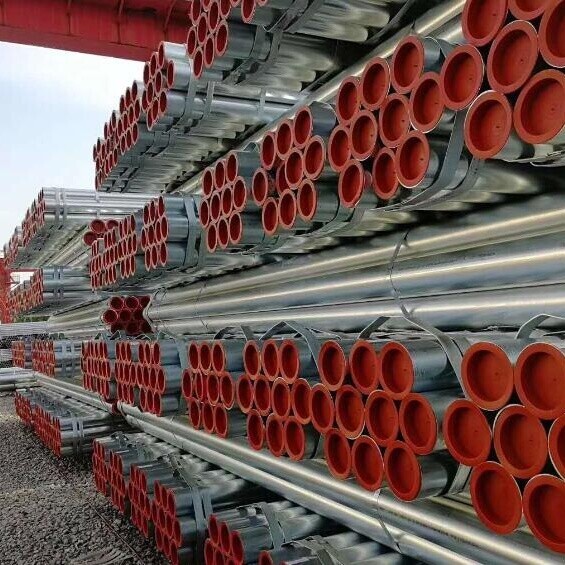

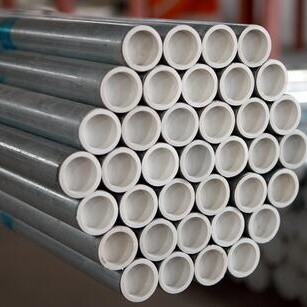

Plastic-lined Galvanized Steel Pipe

Plastic-lined Galvanized Steel Pipe

Pipe Type: Plastic-Lined Galvanized Steel Pipe, PE/PP-R Lined Galvanized Pipe, Corrosion-Resistant Lined Galvanized Pipe

OD: 15mm ~ 300mm

WT: 1.5mm ~ 6mm

Length: 3m, 6m Fixed Length, or Customized.

Connection: Thread (Groove Coupling optional)

Lining Materials: Polyethylene (PE), Polypropylene (PP-R), PVDF (for specific chemicals)

Standards: Complies with GB/T 28897, FDA, NSF/ANSI 61

Application: Building cold & hot water supply systems, Industrial water piping with moderate chemical exposure, Fire sprinkler system branch lines (where permitted by code)

Product Description
Product Display
Product Application
Packaging and shipping

Corrosion & Scale Resistance, Safe & Hygienic

The liner completely isolates water from metal, preventing "yellow water" and rust residue.

Cost-Effective & Easy Installation

An upgrade from galvanized pipes with high cost-performance; can use mature threaded or grooved connections.

Good Strength & Long Service Life

Retains the mechanical strength of galvanized steel pipe, while the liner extends its service life far beyond ordinary galvanized pipe.


Specifications:

ItemDescription
Base PipeMaterial/ProcessHot-dip galvanized welded steel pipe from Quality Carbon Steel (Q215/Q235)

Nominal Diameter

Nominal Diameter (DN): DN15 - DN200

15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200 mm

Zinc CoatingAvg. thickness ≥45μm, for basic external corrosion protection.
StandardsGB/T 3091-2015 Welded Steel Pipes for Low-Pressure Fluid Conveyance
LinerMaterialFood-Grade High-Density Polyethylene (HDPE)
Liner Thickness2.5 - 4.0 mm(Adjustable based on diameter and service requirements)
Density0.93 - 0.96 g/cm³ (HDPE)
Continuous Service Temp.0℃ ~ 60℃, Short-term Peak: ≤ 80℃
Tensile Strength20 - 30 MPa (HDPE)
Hygiene CertificationComplies with safety evaluation standard for drinking water equipment & protective materials.
Core PropertiesNon-toxic, compliant with potable water standards. Excellent water resistance, flexibility, and moderate abrasion resistance, effectively isolating metal from water corrosion and scaling.
Finished Product(PN) Nominal Pressure1.6MPa - 2.0MPa, 1.6 MPa (Typical rating)
Service Temperature Cold Water: 0℃ ~ 55℃
Hot Water: 0℃ ~ 75℃ (Instantaneous up to 95℃)
Product StandardCJ/T 136 "Plastic-lined Composite Steel Pipes", GB/T 28897 "Steel-Plastic Composite Pipes for Fluid Transportation"
Lined Plastic Composite Steel Pipe, Steel-Plastic Composite Pipe for Fluid Transportation
ConnectionThreaded /  Grooved (Victaulic) /  Flanged
Coating Adhesion≥ 30 N/cm (or tested according to CJ/T 136 standard As per CJ/T 136)
Flattening PerformanceNo cracking or delamination when flattened to 2/3 of OD.
Hydrostatic TestWithstand 1.5x PN for ≥5s, no leakage.
Fire ResistanceSuitable for fire sprinkler systems, subject to relevant certifications (e.g., UL, FM).
Endsflat ends, angled ends, threaded connectors or sockets; plastic caps and steel rings are available if needed.
PackingWaterproof Paper wrapped, Steel Strips bundled, two tags on each bundle
Key FeaturesDual Protection: PE liner against corrosion/scaling; galvanized exterior against rust.
Hygienic & Safe: Complies with potable water standards.
High Strength & Long Life: Metal body for pressure, composite structure extends service life.

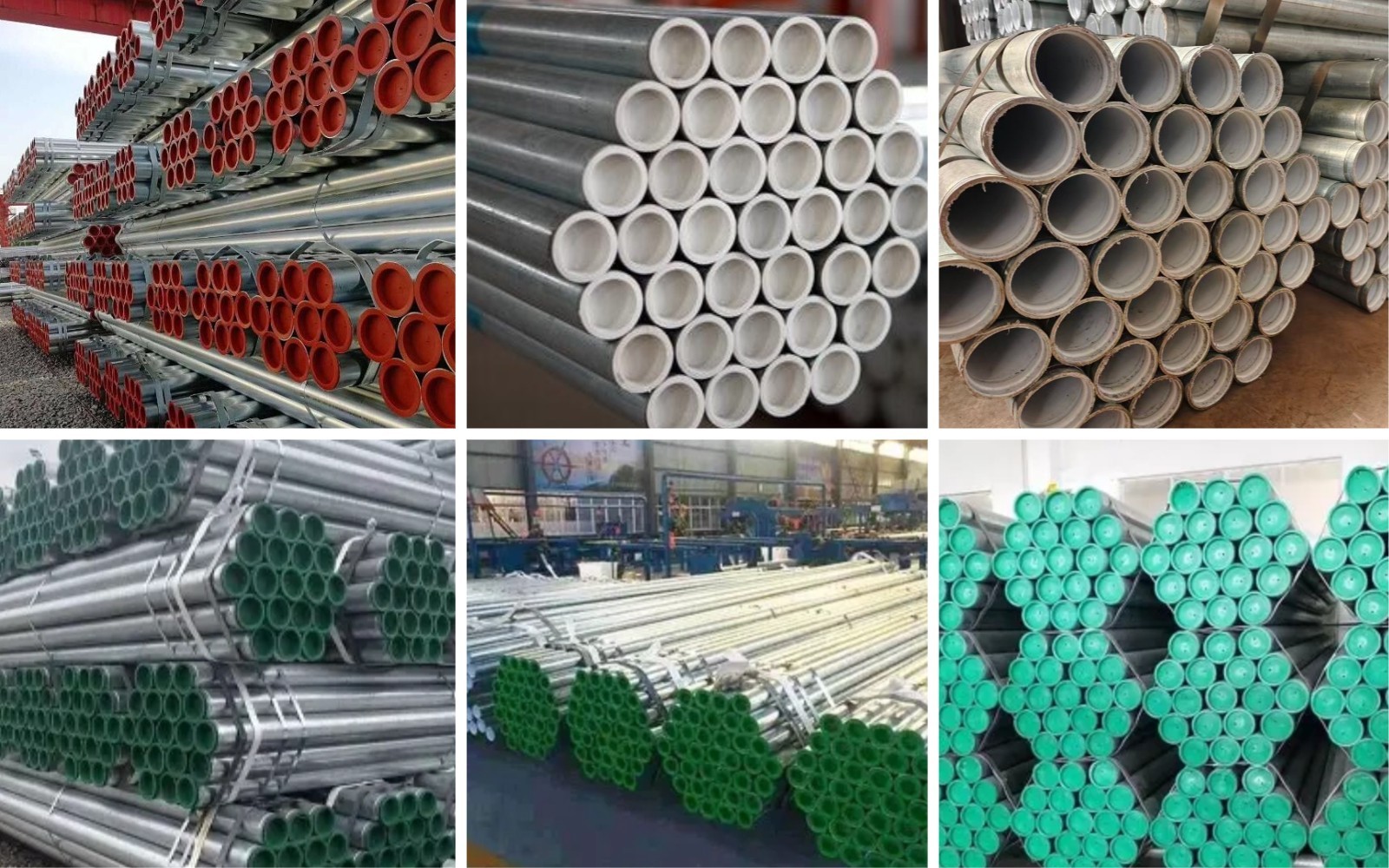

拼图_美图设计室

  • Marine and Marine Engineering
  • VCG41N1294103185
    Petrochemical Industry
  • VCG211475367801
    Municipal Water Supply And Drainage
  • VCG211448584768
    Natural Gas Transportation
  • VCG41N1395455710
    Fire Protection
  • 能源电力行业
    Energy and Electricity
  • 微信图片_20260123145751_17897_32
  • 微信图片_20260123145749_17896_32
  • 微信图片_20260123145748_17895_32
  • 微信图片_20260123145804_17898_32
