Name: Polyethylene (PE) Coated Steel Pipe
SKU: 0

Products Center


Location: Home > Plastic-Coated Steel Pipe > Polyethylene (PE) Coated Steel Pipe

Polyethylene (PE) Coated Steel Pipe

Pipe Type: Polyethylene Coated Steel Pipe, 3-Layer PE Coated Pipe, Single-Layer Polyethylene Coated Pipe, Extruded Polyethylene Anti-Corrosion Pipe

OD: 20mm ~ 3600mm

WT: 1mm ~ 80mm

Length: Random Length, Fixed Length, SRL, DRL, or Customized.

Connection: Weld And Thread

Coating Standard: DIN 30670, DIN 30671, CAN/CSA-Z245.21, AWWA C214, SY/T 0413-2002, ISO 21809-1

Application: Water supply & sewage pipelines, Oil & gas transmission pipelines, Slurry and industrial effluent lines, Marine outfalls and river crossings, Pipe systems requiring high resistance to impact, abrasion, and soil stress.

Send Email

Product Description

Product Display

Product Application

Packaging and shipping

Feature	Single-layer polyethylene coating	Double-layer polyethylene coating	Three-layer polyethylene coating
Coating structure	Single-layer extruded polyethylene（PE）	Adhesive layer + polyethylene layer	Epoxy powder coating (FBE) + Adhesive layer + Polyethylene layer
Total thickness	0.8 mm – 2.0 mm	Copolymer Adhesive (AD): 170–250µm Polyethylene(PE):1.8–3.7mm Total thickness: 1.8 mm – 4.5 mm	Fusion-bonded epoxy (FBE): >100 µm
			Copolymer adhesive (AD): 170 – 250 µm
			Polyethylene (PE): 2.5 – 3.7 mm
			Total thickness: 2.0 mm – 4.7 mm (excluding epoxy layer thickness)

Key Features	Economical and efficient, providing basic corrosion and mechanical protection	Enhanced adhesion and superior impermeability compared to single-layer PE.	Superior protection, combining the strong adhesion of FBE with the mechanical protection of PE
Main Application	Cable conduits, structural pipes in general corrosive environments	Suitable for municipal water systems, industrial pipelines, and moderately corrosive environments.	Suitable for long-distance oil and gas pipelines, crossing sections, harsh soil environments, and urban gas pipelines.
Standards	DIN 30670, GB/T 28897	DIN 30670, SY/T 0413-2002	ISO 21809-1, DIN 30670, SY/T 0413-2002

Additional information：

Polypropylene (PP) coating

The structure is the same as 2PE/3PE, but with PE replaced by PP. Polypropylene (PP) layer: 1.4 – 4.0 mm; Temperature resistance: PP coating systems can withstand temperatures up to 110°C

Specification：

Pipe Type	PE Coated Pipe, 2PE Coated Pipe, 3PE Coated Pipe
Bare pipe	Submerged Arc Welded Pipe (LSAW/SSAW), Electric Resistance Welded Pipe (ERW) 埋弧焊管 (LSAW/SSAW)、电阻焊管 (ERW)
Outer Diameter (OD)	219mm~2020mm ( Φ159 – Φ2020)
Wall Thickness	5 mm - 25 mm
Pipe Length	4m, 6m, 12m, 18m, 21m (or customized according to customer requirements)
Steel Pipe Material and Grade	API 5L (PSL1/PSL2, Gr.B, X42-X80), GB/T 9711.1

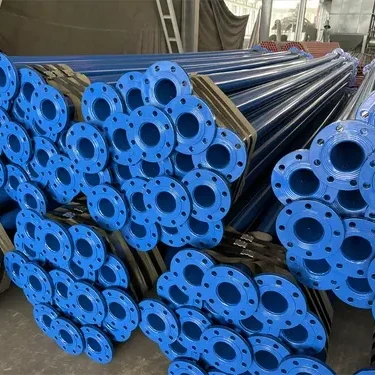

Pipe End Treatment	Plain end, beveled end, threaded or socketed; plastic end caps/steel rings available for protection

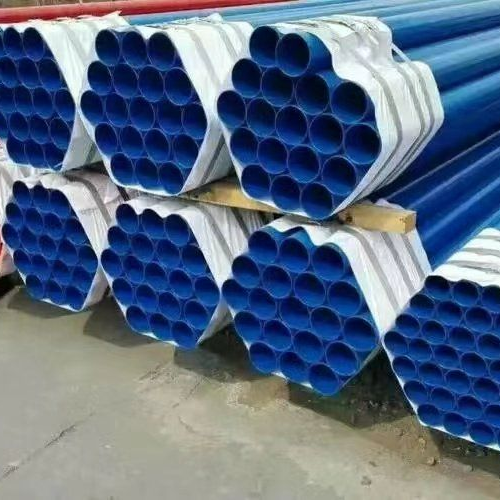

Packaging Method	Wrapped with waterproof paper, bundled with steel straps, two labels per bundle

Marine and Marine Engineering
Petrochemical Industry
Municipal Water Supply And Drainage
Natural Gas Transportation
Fire Protection
Energy and Electricity

FAQ

1.What kind of customer service do you provide?

We provide comprehensive customer service, including basic design, procurement of supporting facilities, and options for dispatching installation guides.

2.What are the customer evaluations of your company?

We are proud to consistently receive five-star reviews from our customers, which demonstrates our commitment to quality and service.

3.What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished products, every stage is carefully inspected to ensure excellent quality.

4.Do you accept container loading inspection?

Welcome to dispatch inspectors, not only for container loading, but also at any time during production.

5.What is the delivery time?

The delivery time depends on the quantity of orders. Usually, the delivery time to the nearest port in China is 15-30 days after receiving the deposit.

6. How to obtain a project quotation?

You can contact us 24 * 7 via email, phone, WhatsApp, WeChat, etc. You will receive a reply within 4 hours.
