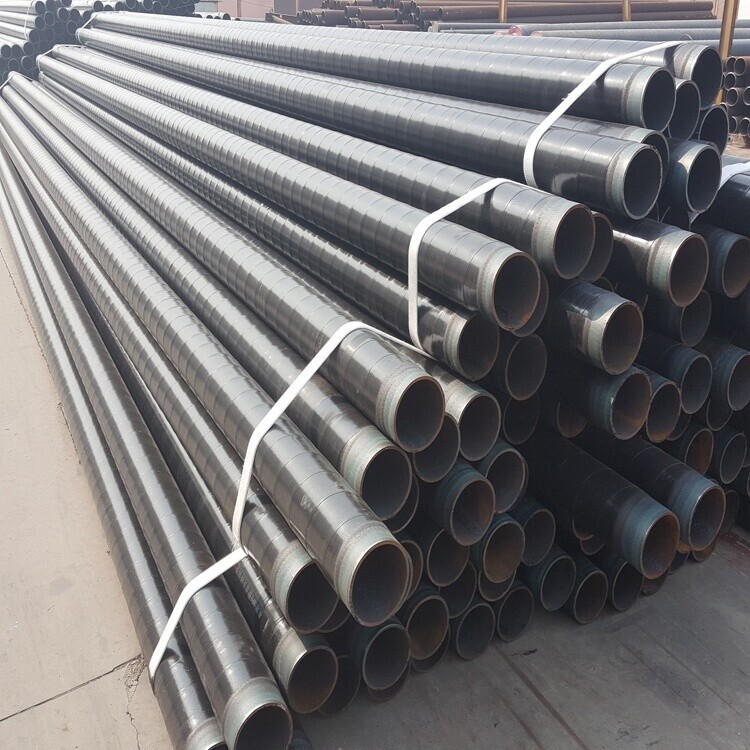

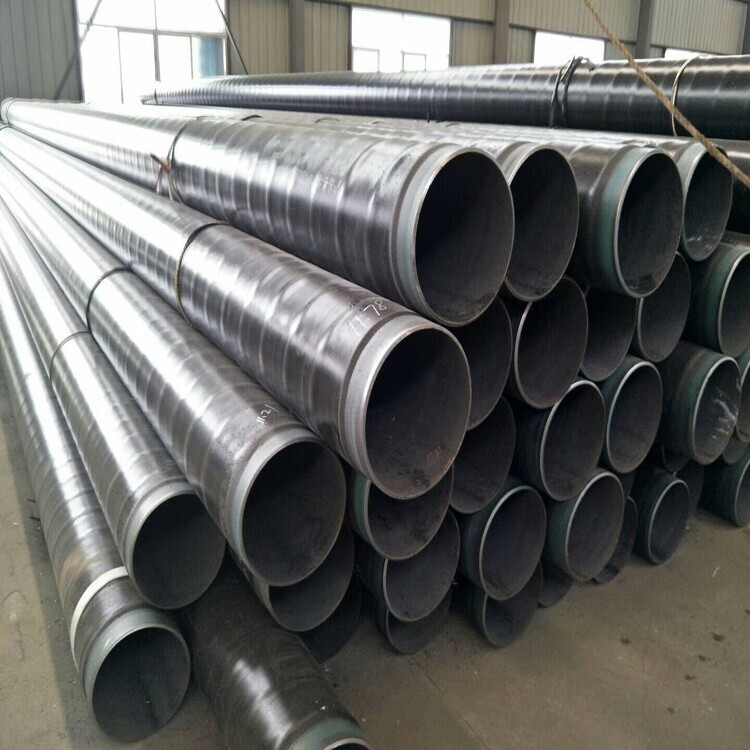

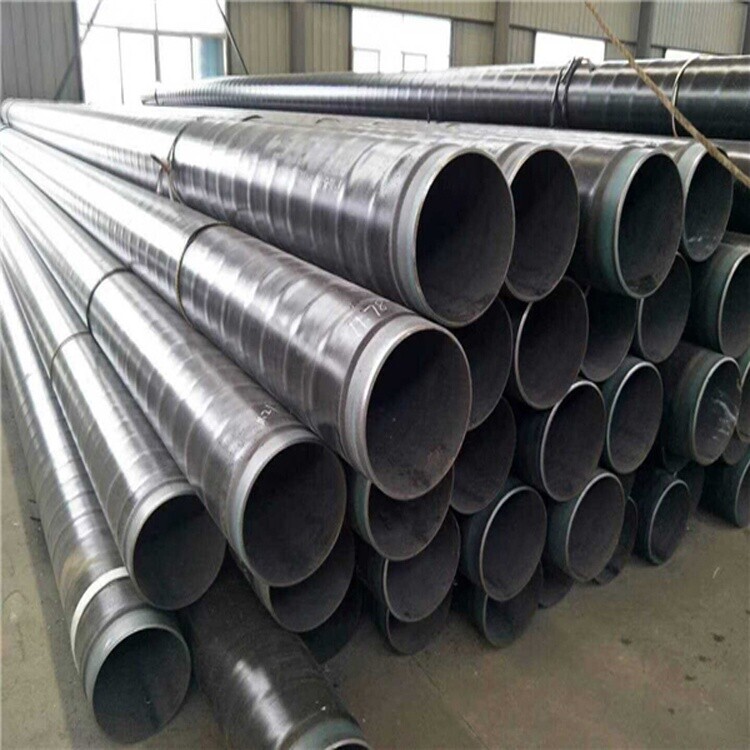

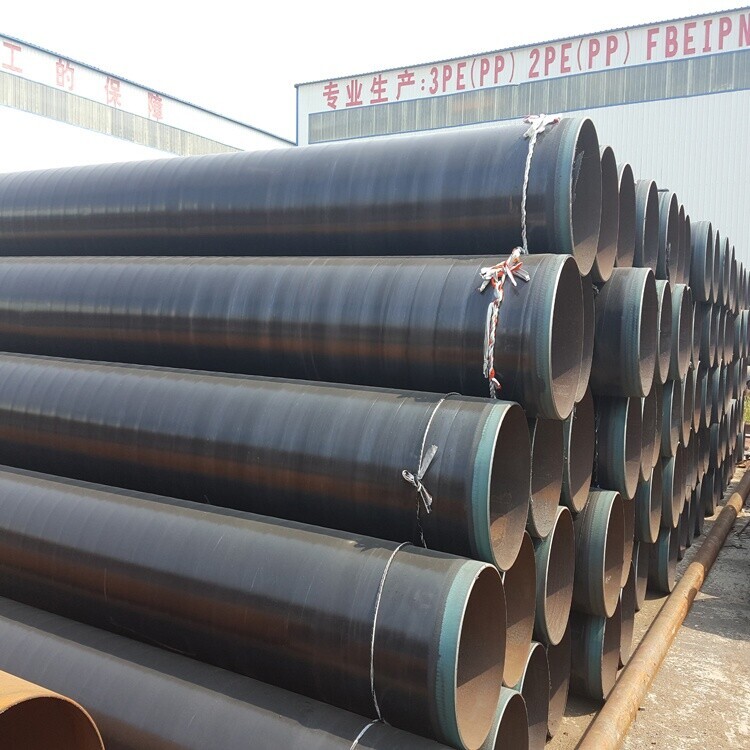

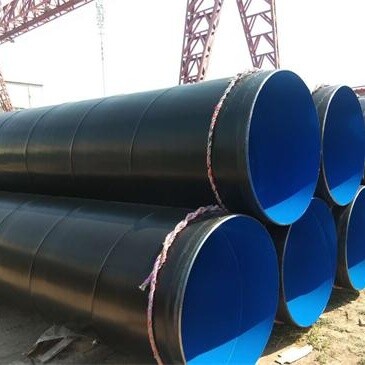

3-Layer Polyethylene（3PE）Coated Pipe

Product Name: 3LPE Coated Pipe, 3PE Coating Pipe, Anti Corrosion Steel Pipe

Coating Type: 3 Layer Polyethylene

OD: 25 mm to 3000 mm

WT: SCH5S to SCH160, XXS

Length: Up to 12m

Connection: Weld And Thread

Standard: ANSI, JIS, DIN, EN, ISO,DIN;CAN/CSA,NFA

Send Email

Product Description

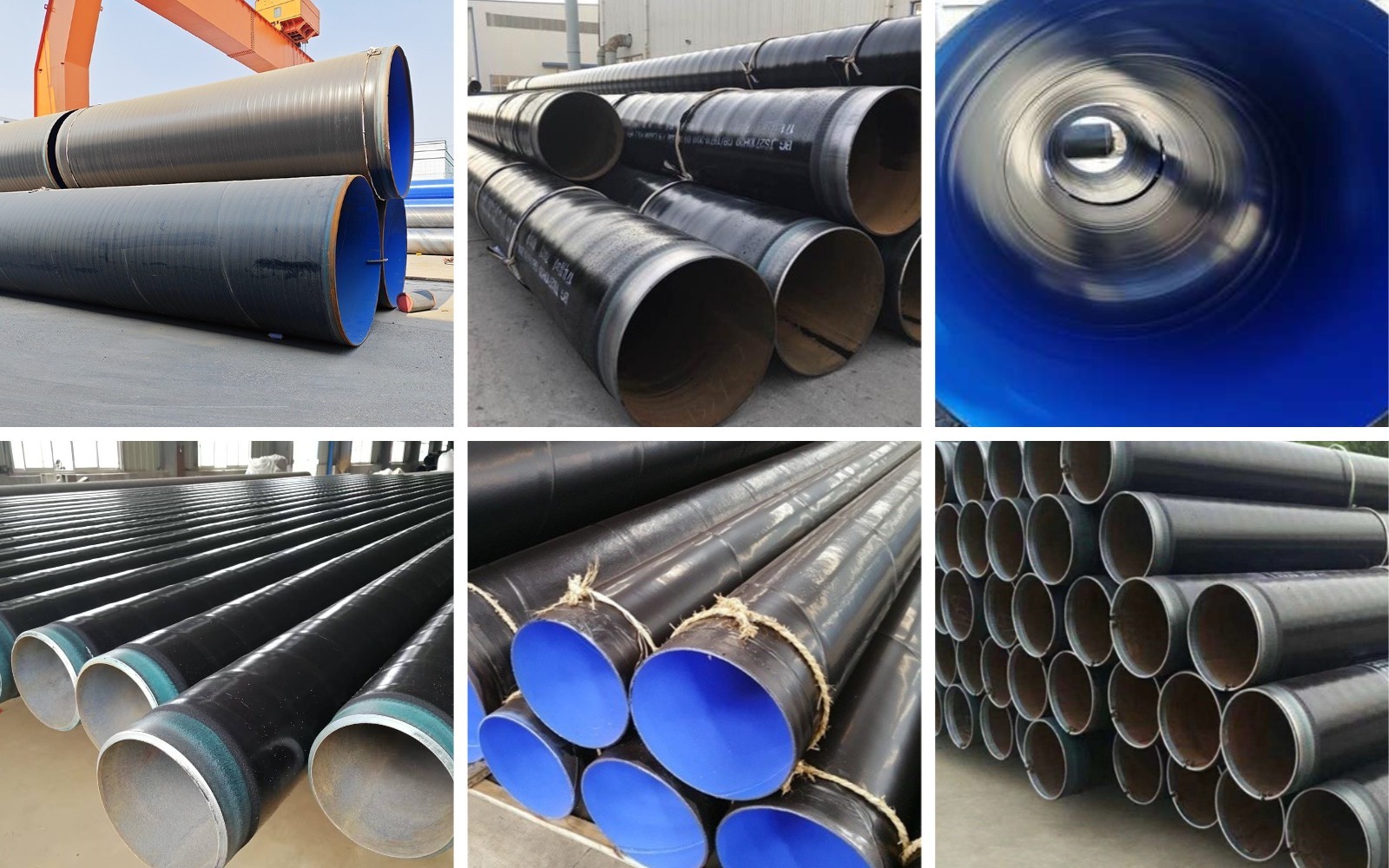

Product Display

Product Application

Packaging and shipping

The industry-standard, high-performance external corrosion protection system for demanding environments.

Combines a Fusion Bonded Epoxy (FBE) primer, a copolymer adhesive layer, and an extruded Polyethylene (PE) top layer into one integrated system, offering unmatched adhesion, cathodic disbondment resistance, and mechanical strength.

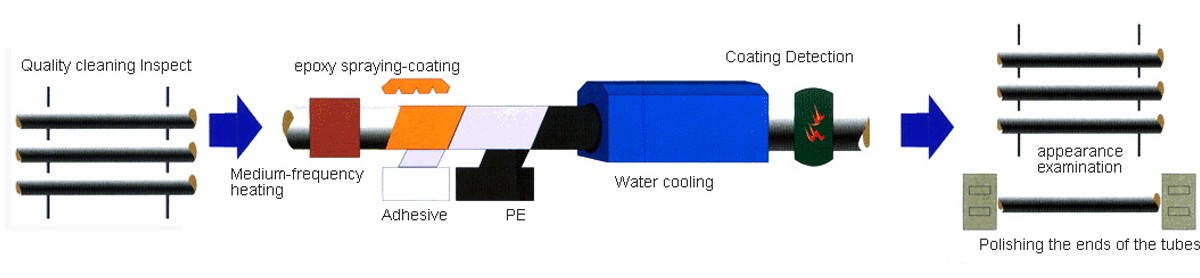

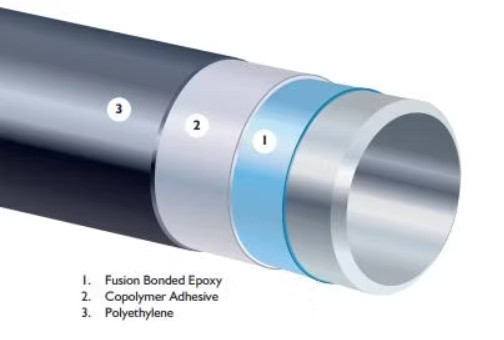

Coating Structure & Function：

First Layer (Bottom Layer): Fusion Bonded Epoxy (FBE)

Function: Provides excellent long-term adhesion and cathodic disbondment resistance, chemically bonding with the steel pipe surface to form a strong corrosion protection foundation.

Second Layer (Intermediate Layer): Copolymer Adhesive

Function: Acts as a chemical bonding agent, securely joining the polar FBE bottom layer with the non-polar polyethylene top layer, ensuring system integrity.

Third Layer (Top Layer): Extruded Polyethylene (PE)

Function: Provides extra-thick mechanical protection against handling, backfilling, soil stress, rock impact, and moisture penetration.

Specifications：

Item	Detailed Parameters & Description
Coating Structure	Three-layer Composite: Layer 1: Fusion-bonded epoxy powder (FBE), thickness >100 µm Layer 2: Copolymer adhesive (AD), thickness 170 – 250 µm Layer 3: Polyethylene (PE), thickness 2.5 – 3.7 mm (standard range)



Bare Pipe	Material	Carbon Steel ( API 5L (PSL1, PSL2), GB/T 9711.1)
	Type & Process	(LSAW/SSAW), (ERW), Seamless Cold Drawn,Hot Finished,Hot Expanded
	OD Range	Φ159 mm – Φ1220 mm (Up to 2020mm)
	WT Range	5 mm – 25 mm SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm
	Length	4m, 6m, 12m, 18m, 21m(or customized)
	Grades	Gr. B, X42, X46, X52, X60, X65, X70, X80
	Inspection	Hydrostatic pressure testing and non-destructive testing (such as ultrasonic testing UT) comply with API standards.
Materials & Standards	Pipe Grade	API 5L (PSL1/PSL2, Gr.B, X42-X80), GB/T 9711.1 PSL1：API 5L – Gr.B/X42/X46/X52/X60/X70 etc. PSL-2：ISO3183 – L245/L290/L320/L360/L415/L485 etc.
	Coating Std.	ISO 21809-1, DIN 30670, SY/T 0413-2002
	Certification	Third-party inspections such as SGS and BV are acceptable.
Application		Designed for demanding environments, such as long-distance oil and gas pipelines, directional drilling crossings, rocky areas, subsea/river crossings, urban gas distribution networks, and critical water systems.

Advantage		Combining the superior adhesion of FBE with the top-tier mechanical protection of PE, it provides the longest-lasting corrosion protection.

Ends		Plain end, beveled end, threaded or socketed; end caps are available for protection.

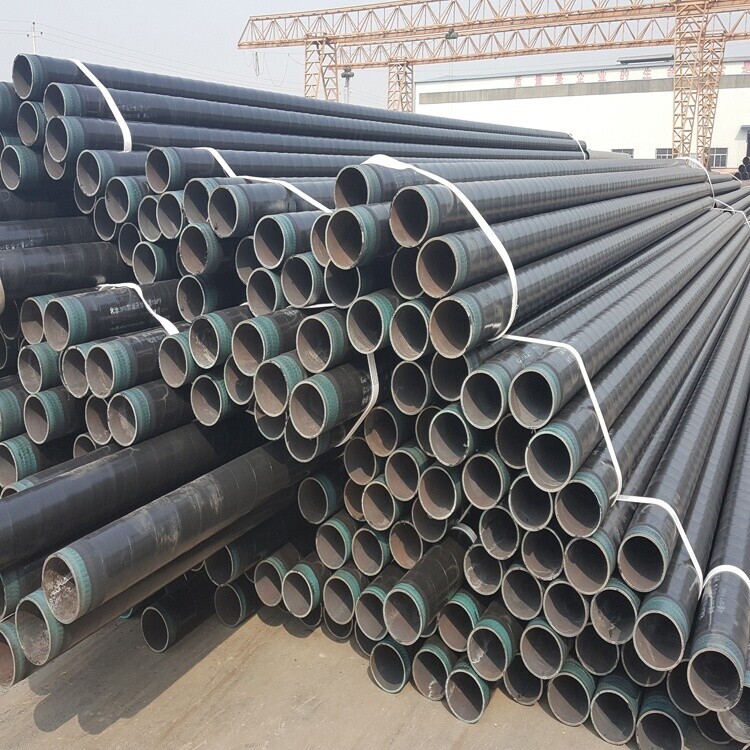

Packing		Wrapped in waterproof paper, secured with steel straps, and each bundle is labeled.

Marine and Marine Engineering
Petrochemical Industry
Municipal Water Supply And Drainage
Natural Gas Transportation
Fire Protection
Energy and Electricity
